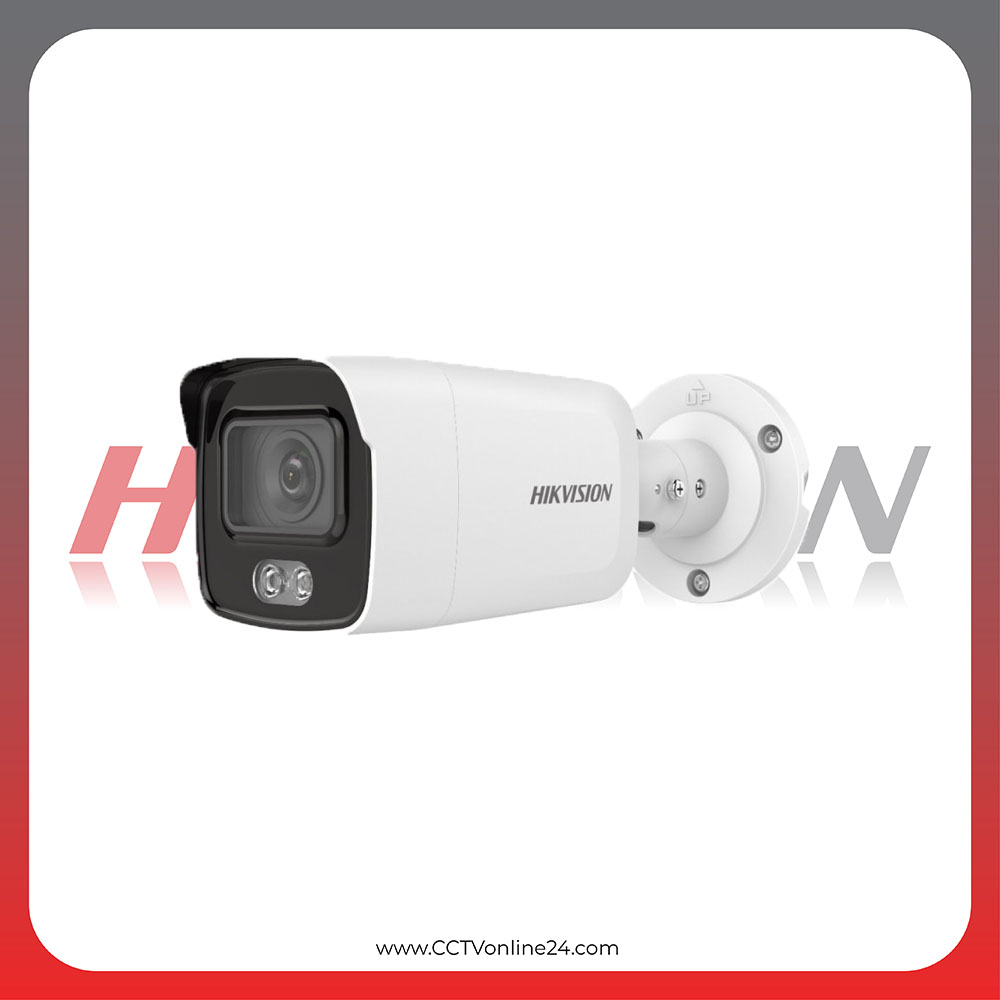

Hikvision DS-2CD3047G2-LS 4 MP ColorVu Fixed Mini Bullet Network Camera
Spesifikasi Hikvision DS-2CD3047G2-LS 4 MP ColorVu Fixed Mini Bullet Network Camera :
- 24/7 Colorful imaging
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- Support 12 VDC power output for pickup
- Audio and alarm interfaces available
- Clear imaging against strong back light due to 130 dB true WDR technology
CALL FOR PRICE
Deskripsi
Spesifikasi Hikvision DS-2CD3047G2-LS 4 MP ColorVu Fixed Mini Bullet Network Camera :
- 24/7 Colorful imaging
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- Support 12 VDC power output for pickup
- Audio and alarm interfaces available
- Clear imaging against strong back light due to 130 dB true WDR technology
Sekilas Mengenai Brand Hikvision
Hikvision adalah penyedia produk dan solusi keamanan yang terkemuka di dunia. Menghadirkan tenaga kerja litbang yang luas dan sangat terampil, Hikvision memproduksi rangkaian lengkap produk dan solusi menyeluruh untuk berbagai pasar vertikal. Selain industri keamanan, Hikvision memperluas jangkauan ke teknologi rumah pintar, otomatisasi industri, dan industri elektronik otomotif untuk mencapai visi jangka panjang. Produk Hikvision juga memberikan kecerdasan bisnis yang andal bagi pengguna akhir, yang dapat memungkinkan operasi yang lebih efisien dan kesuksesan komersial yang lebih besar.
Hikvision mengkhususkan dalam teknologi video surveillance, serta merancang berbagai produk CCTV dan video surveillance yang inovatif. Perusahaan yang berasal dari China ini melengkapi berbagai koleksi produknya mulai dari Smart IP cameras, HD analog cameras, speed domes, NVRs, DVRs, software pengelola video, access control dan alarm systems, encoders, decoders, hingga berbagai elemen canggih untuk sistem keamanan.
Hikvision IP
Seiring dengan meningkatnya kebutuhan keamanan yang beragam, Hikvision mendesain dan menyesuaikan kamera jaringan untuk memenuhi berbagai kebutuhan – mulai dari pengawasan video umum hingga analisis konten video berdasarkan algoritme Deep Learning – dan lebih banyak lagi.
Memproses gambar berkualitas tinggi dengan berbagai rentang kondisi pencahayaan – sambil meminimalkan kebutuhan penyimpanan dan bandwidth – dan menyediakan kesadaran situasional berdasar data untuk membantu Anda membuat keputusan yang cerdas, kamera jaringan kami merupakan pilihan ideal bagi ratusan skenario kebutuhan.
CCTVonline24 menyediakan CCTV Hikvision IP dengan harga terjangkau, kualitas terbaik, bergaransi dan terpercaya.
Untuk pemesanan Anda dapat menghubungi kami di 021-2256 6665 atau WA 0895 1888 1777 / WA 0896 1888 1777.
Informasi Tambahan
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Max. Resolution | 2688 × 1520 |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 130 dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Iris Type | Fixed |
| Lens Mount | M16 |
| Focal Length | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°, 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°, 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° |
| Aperture | F1.0 |
| DORI Distance | 2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 2 m, 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m, 6 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Supplement Light | White light |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360), 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Fourth Stream | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings. |
| Video Compression | Fourth stream: H.265/H.264/MJPEG, Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Region of Interest (RoI) | 5 fixed region(s) for main stream and sub-stream |
| Audio Sample Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Simultaneous Live View | Up to 6 channels |
| API Network | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | Hik-Central, Hik-Connect, iVMS-4200 |
| Web Browser | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Plug-in required live view: IE 10, IE 11 |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Audio | 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium;, 1 output (line out), max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono sound |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Unattended baggage detection, object removal detection, scene change detection, audio exception detection |
| Linkage Method | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Type 1, Class 3 |
| Power Consumption | 12 VDC, 0.6 A, max. 7 W PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.5 W |
| Dimensions | 78.8 × 78.6 × 235.9 mm (3.1" × 3.1" × 9.3") |
| Weight | Approx. 860 g (1.9 lb.) |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU), Reach: Regulation (EC) No 1907/2006 |
| Ingress Protection | IP67 (IEC 60529-2013) |
