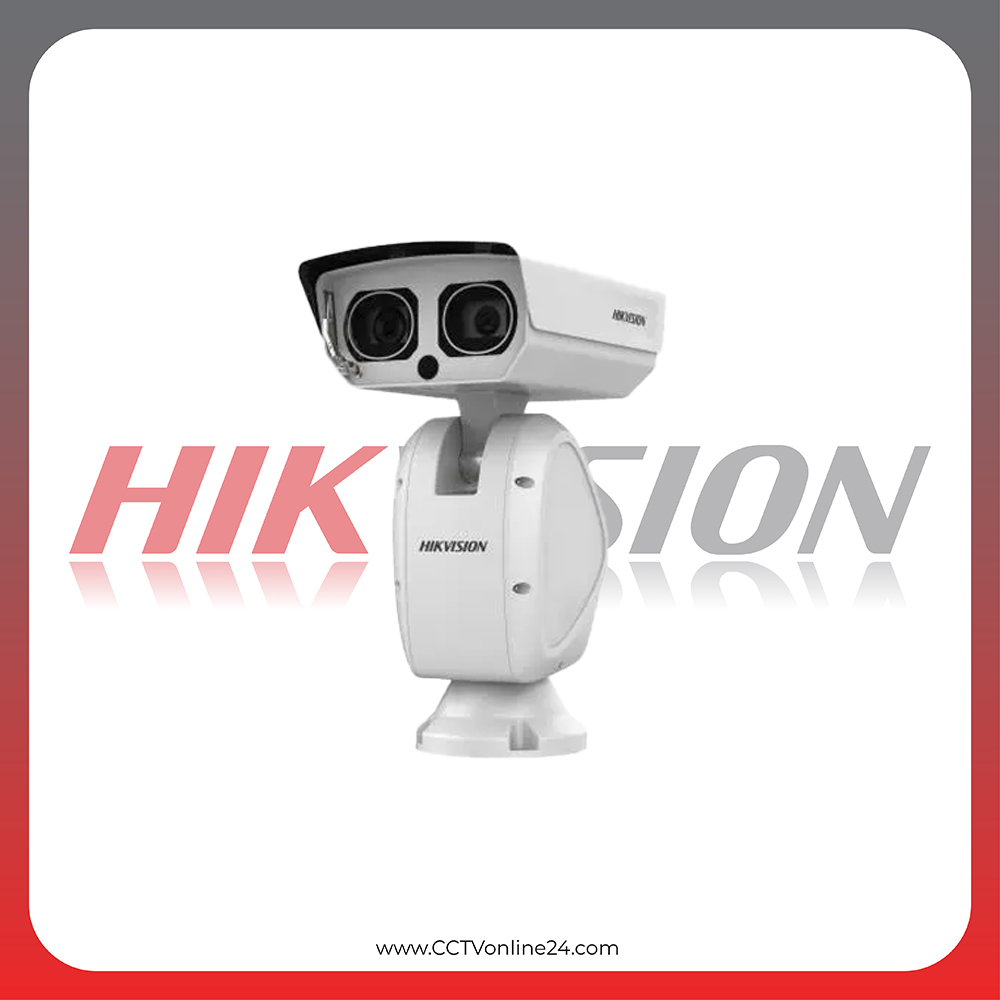

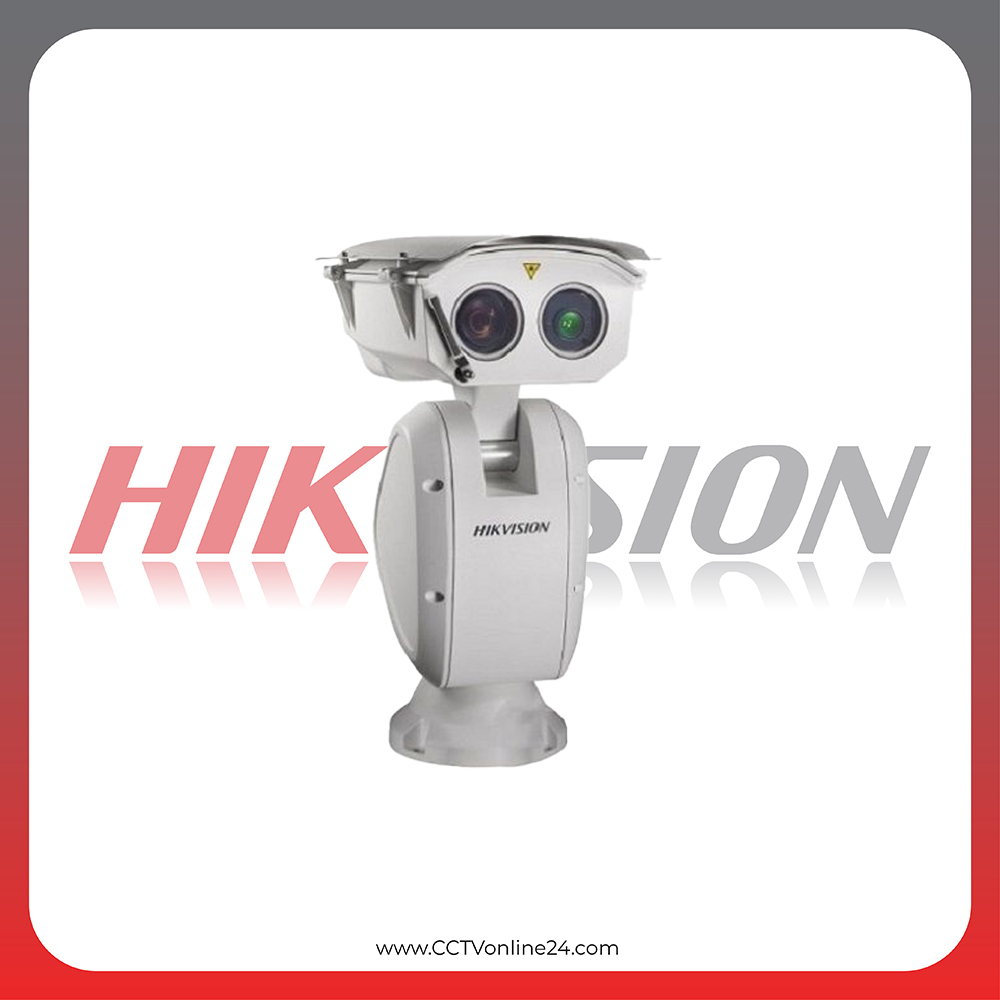

Hikvision DS-2DY9250IAX-A (D) 2MP 50× Laser Network Positioning System
SpesifikasI Hikvision DS-2DY9250IAX-A (D) 2MP 50× Laser Network Positioning System :
- 1/2.8″ progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination: Color: 0.01 Lux @(F1.8, AGC ON) B/W: 0.001 Lux @(F1.8, AGC ON) 0 Lux with laser
- 50 × optical zoom, 16 × digital zoom
- 120 dB WDR, 3D DNR, HLC, BLC, EIS, OIS
- Optical defog
- 24 VAC
- Support up to 1000 m laser distance
- Support H.265+/H.265 video compression
- Rain-sensing auto wiper
CALL FOR PRICE
Deskripsi
SpesifikasI Hikvision DS-2DY9250IAX-A (D) 2MP 50× Laser Network Positioning System :
- 1/2.8″ progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination: Color: 0.01 Lux @(F1.8, AGC ON) B/W: 0.001 Lux @(F1.8, AGC ON) 0 Lux with laser
- 50 × optical zoom, 16 × digital zoom
- 120 dB WDR, 3D DNR, HLC, BLC, EIS, OIS
- Optical defog
- 24 VAC
- Support up to 1000 m laser distance
- Support H.265+/H.265 video comp
- ression
- Rain-sensing auto wiper
Sekilas Mengenai Brand Hikvision
Hikvision adalah penyedia produk dan solusi keamanan yang terkemuka di dunia. Menghadirkan tenaga kerja litbang yang luas dan sangat terampil, Hikvision memproduksi rangkaian lengkap produk dan solusi menyeluruh untuk berbagai pasar vertikal. Selain industri keamanan, Hikvision memperluas jangkauan ke teknologi rumah pintar, otomatisasi industri, dan industri elektronik otomotif untuk mencapai visi jangka panjang. Produk Hikvision juga memberikan kecerdasan bisnis yang andal bagi pengguna akhir, yang dapat memungkinkan operasi yang lebih efisien dan kesuksesan komersial yang lebih besar.
Hikvision mengkhususkan dalam teknologi video surveillance, serta merancang berbagai produk CCTV dan video surveillance yang inovatif. Perusahaan yang berasal dari China ini melengkapi berbagai koleksi produknya mulai dari Smart IP cameras, HD analog cameras, speed domes, NVRs, DVRs, software pengelola video, access control dan alarm systems, encoders, decoders, hingga berbagai elemen canggih untuk sistem keamanan.
Hikvision IP
Seiring dengan meningkatnya kebutuhan keamanan yang beragam, Hikvision mendesain dan menyesuaikan kamera jaringan untuk memenuhi berbagai kebutuhan – mulai dari pengawasan video umum hingga analisis konten video berdasarkan algoritme Deep Learning – dan lebih banyak lagi.
Memproses gambar berkualitas tinggi dengan berbagai rentang kondisi pencahayaan – sambil meminimalkan kebutuhan penyimpanan dan bandwidth – dan menyediakan kesadaran situasional berdasar data untuk membantu Anda membuat keputusan yang cerdas, kamera jaringan kami merupakan pilihan ideal bagi ratusan skenario kebutuhan.
CCTVonline24 menyediakan CCTV Hikvision IP dengan harga terjangkau, kualitas terbaik, bergaransi dan terpercaya.
Untuk pemesanan Anda dapat menghubungi kami di 021-2256 6665 atau WA 0895 1888 1777 / WA 0896 1888 1777.
Informasi Tambahan
| Image Sensor | 1/2.8" progressive scan CMOS |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.01 Lux @(F1.8, AGC ON) B/W: 0.001 Lux @(F1.8, AGC ON) 0 Lux with laser |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| WDR | 120 dB WDR |
| Digital Zoom | 16× |
| Focal Length | 6.6 mm to 330 mm, 50× Optical |
| Zoom Speed | Approx. 4.5 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 43.4° to 1.2° (wide-tele) Vertical field of view: 25.2° to 0.6° (wide-tele) Diagonal field of view: 49.1° to 1.3° (wide-tele) |
| Aperture | F1.8 to F5.5 |
| IR Distance | Working Distance: 10 mm to 1500 mm (wide-tele) |
| Pan Range | 360° endless |
| Tilt Range | From -90° to 40°(auto-flip) |
| Pan Speed | Configurable, from 0.1°/s to 100°/s, Preset Speed: 50°/s |
| Tilt Speed | Configurable, from 0.1°/s to 50°/s, Preset Speed: 100°/s |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 256 kbps to 16384 kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | 256 kbps to 16384 kbps |
| H.264+ | yes |
| H.265+ | yes |
| Region of Interest (RoI) | Main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Protocol | IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour |
| API Network | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+ |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Client | iVMS-4200, iVMS-5200 |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| White Balance | Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Ethernet | 1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE |
| Alarm | 7-ch alarm input/2-ch alarm output |
| Audio | 1-ch audio input/1-ch audio output |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Smart Detection | Face Detection, Intrusion Detection, Line Crossing Detection, Audio Exception |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, |
| Power | 24 VAC. Max. 110 W, including max. 30 W for laser and max. 34.8 W for heater |
| Working Environment | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F) |
| Material | Aluminum alloy, ADC12 |
| Dimensions | 256 mm × 334 mm × 505 mm (10.1" × 13.1" × 19.9") |
| Weight | Approx. 17 kg (37.5 lb) |
| Wiper | Yes. Rain-sensing auto wiper |
| Ingress Protection | IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
