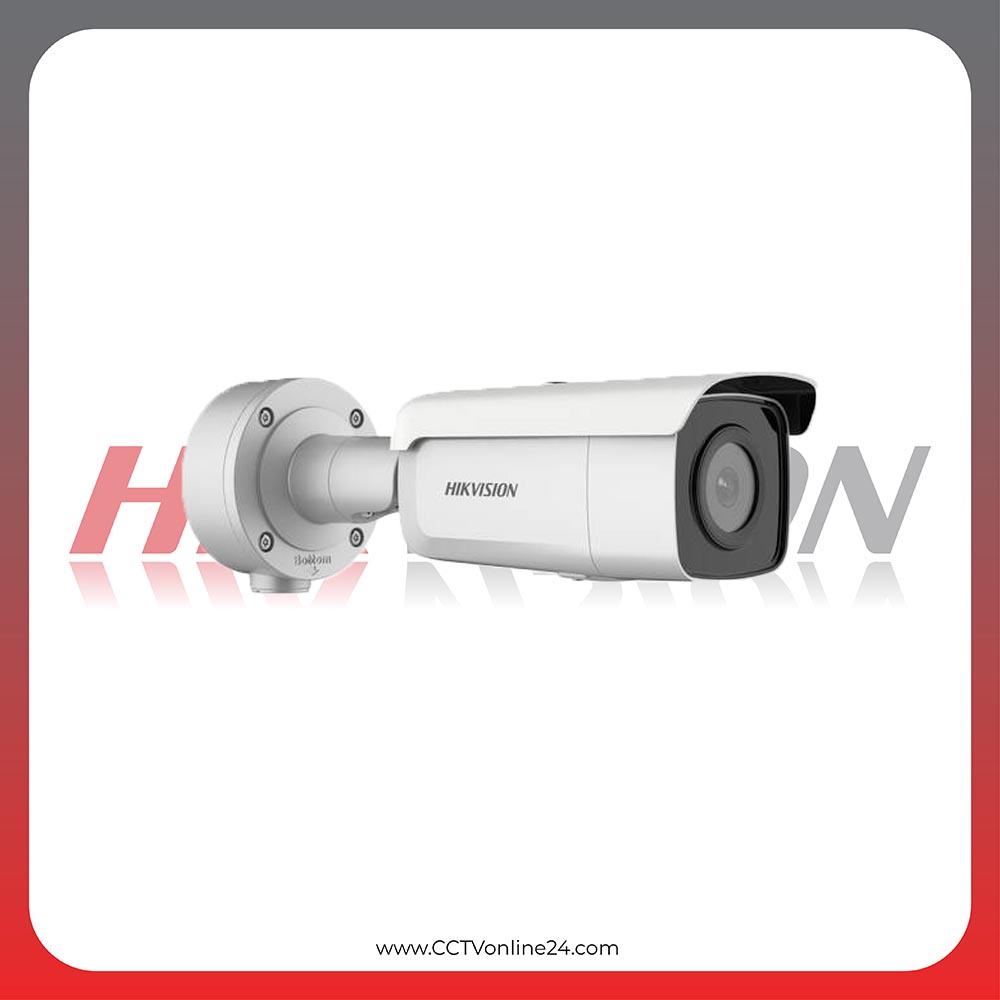

Hikvision DS-2CD3686G2-IZS 8 MP AcuSense Varifocal Bullet Network Camera
Spesifikasi Hikvision DS-2CD3686G2-IZS 8 MP AcuSense Varifocal Bullet Network Camera :
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP66) and vandal-resistant (IK10)
- 3D DNR technology delivers clean and sharp images
- Motorized varifocal lens for easy installation
CALL FOR PRICE
Deskripsi
Spesifikasi Hikvision DS-2CD3686G2-IZS 8 MP AcuSense Varifocal Bullet Network Camera :
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP66) and vandal-resistant (IK10)
- 3D DNR technology delivers clean and sharp images
- Motorized varifocal lens for easy installation
Sekilas Mengenai Brand Hikvision
Hikvision adalah penyedia produk dan solusi keamanan yang terkemuka di dunia. Menghadirkan tenaga kerja litbang yang luas dan sangat terampil, Hikvision memproduksi rangkaian lengkap produk dan solusi menyeluruh untuk berbagai pasar vertikal. Selain industri keamanan, Hikvision memperluas jangkauan ke teknologi rumah pintar, otomatisasi industri, dan industri elektronik otomotif untuk mencapai visi jangka panjang. Produk Hikvision juga memberikan kecerdasan bisnis yang andal bagi pengguna akhir, yang dapat memungkinkan operasi yang lebih efisien dan kesuksesan komersial yang lebih besar.
Hikvision mengkhususkan dalam teknologi video surveillance, serta merancang berbagai produk CCTV dan video surveillance yang inovatif. Perusahaan yang berasal dari China ini melengkapi berbagai koleksi produknya mulai dari Smart IP cameras, HD analog cameras, speed domes, NVRs, DVRs, software pengelola video, access control dan alarm systems, encoders, decoders, hingga berbagai elemen canggih untuk sistem keamanan.
Hikvision IP
Seiring dengan meningkatnya kebutuhan keamanan yang beragam, Hikvision mendesain dan menyesuaikan kamera jaringan untuk memenuhi berbagai kebutuhan – mulai dari pengawasan video umum hingga analisis konten video berdasarkan algoritme Deep Learning – dan lebih banyak lagi.
Memproses gambar berkualitas tinggi dengan berbagai rentang kondisi pencahayaan – sambil meminimalkan kebutuhan penyimpanan dan bandwidth – dan menyediakan kesadaran situasional berdasar data untuk membantu Anda membuat keputusan yang cerdas, kamera jaringan kami merupakan pilihan ideal bagi ratusan skenario kebutuhan.
CCTVonline24 menyediakan CCTV Hikvision IP dengan harga terjangkau, kualitas terbaik, bergaransi dan terpercaya.
Untuk pemesanan Anda dapat menghubungi kami di 021-2256 6665 atau WA 0895 1888 1777 / WA 0896 1888 1777.
Informasi Tambahan
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Minimum Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | Day, Night, Auto, Schedule, IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens Type | Varifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional |
| Field of View | 2.7 to 13.5 mm: horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127° to 52°, 7 to 35 mm: horizontal FOV 42° to 15°, vertical FOV 23° to 9°, diagonal FOV 49° to 17° |
| Lens Mount | 2.7 to 13.5 mm: Ø14; 7 to 35 mm: Integrated |
| Iris Type | Auto-iris |
| Aperture | 2.7 to 13.5 mm: F1.4, 7 to 35 mm: F1.6 |
| DORI Distance | 2.7 to 13.5 mm: Wide: D: 86 m, O: 34 m, R: 17 m, I: 8 m Tele: D: 192 m, O: 76 m, R: 38 m, I: 19 m, 7 to 35 mm: Wide: D: 200 m, O: 79 m, R: 40 m, I: 20 m Tele: D: 580 m, O: 230 m, R: 116 m, I: 58 m |
| Supplement Light | 2.7 to 13.5 mm: up to 60 m, 7 to 35 mm: up to 80 m |
| Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720), 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360), 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Fourth Stream | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | *Third stream and fourth stream are supported under certain settings., Fourth stream: H.265/H.264/MJPEG, Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (RoI) | 5 fixed regions for main stream and sub-stream |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sample Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, ISUP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API Network | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Network Storage | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | Hik-Central, Hik-Connect, iVMS-4200 |
| Web Browser | Local service: Chrome 57.0+, Firefox 52.0+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Plug-in required live view: IE 10, IE 11 |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| WDR | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Smart Event | Unattended baggage detection, object removal detection, scene change detection, audio exception detection |
| Linkage Method | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning |
| Power | 12 VDC ± 25%, 1.08 A, max. 13 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 15 W |
| Dimensions | Ø144.1 mm × 345.7 mm (Ø5.67" × 13.6"), Package Dimension 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | Approx. 1435 g (3.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter |
| Material | Aluminum alloy body |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU, Reach: Regulation (EC) No 1907/2006 |
| Ingress Protection | IK10 (IEC 62262:2002), IP66: IEC 60529-2013 |
